Products
We hope that you will enjoy our high-quality products as much as it is our passion to produce them for you.

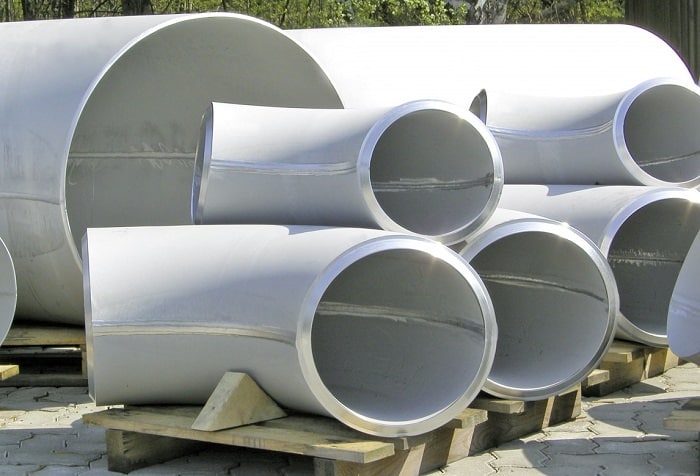

Elbows
Uhlig manufactures the elbows from two longitudinally welded half shells, which makes it much more streamlined. For large bend diameters and special wall thicknesses, our strength lies in the design of the smallest radii.
- In ferritic, austenitic and high-alloy materials
- Cold or hot deformed
- In any desired number of degrees
- From 219 mm (8“) to 2600 mm (103”) outside diameter
- With 203 mm to 3300 mm radius
- With 3 mm to 80 mm wall thickness
- With or without surface treatment
- With or without baffles

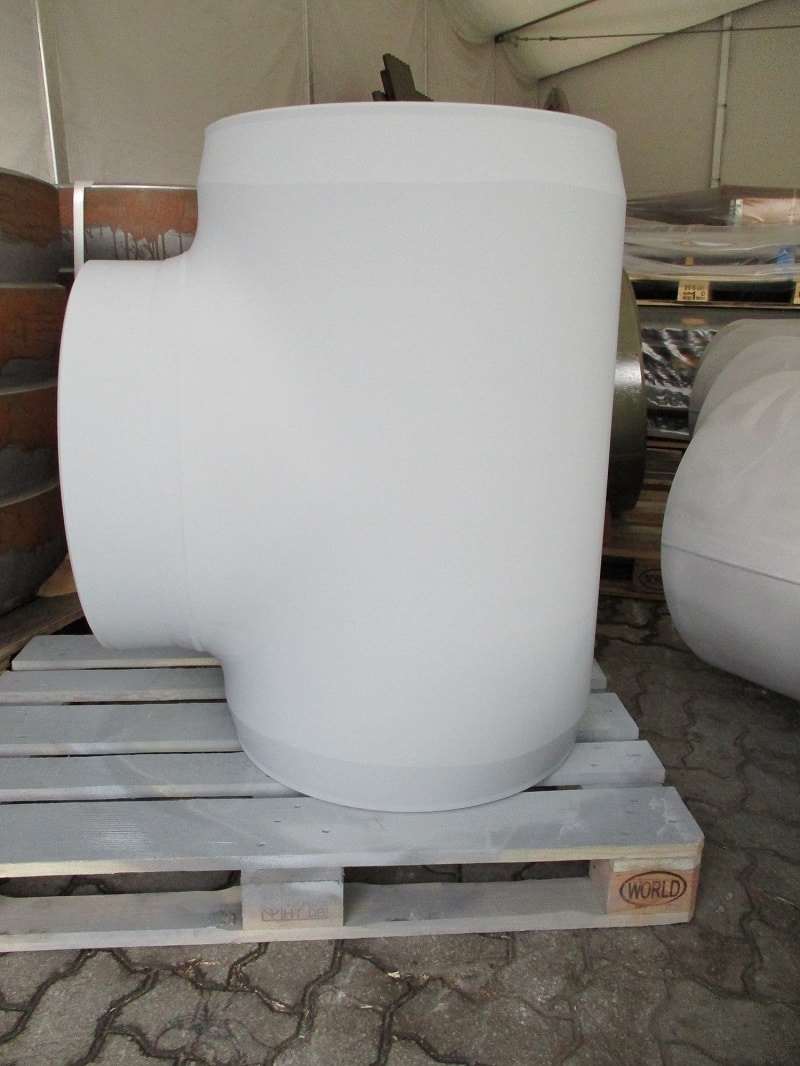

Extrusions and T-Pieces
Uhlig manufactures Extrusions and T-Pieces in various production variants.
- Collared from pipes (e.g. collectors for the gas industry)
- Necked with two longitudinal seams
- Necked with a longitudinal seam
- Pressed from two half shells
- Made of pipe (pipe sections) with welded-on outlet
- Supplementary Y-pieces, cross pieces and similar constructions or special constructions
- With or without surface treatment
- With or without baffles
Caps shelves and dished shelves
We offer you various production options for finishing elements.
- Diameter from 114.3 mm to 1420 mm
- Other dimensions on request
- Made from ferritic, austenitic and high-alloy materials
- With or without end machining
- Most important product standards: DIN 28011/DIN 28013, ANSI B 16.9 without §§ 2.2 and 9
Reducer and Transition Pieces
Uhlig manufactures reducers in welded design. These can be manufactured in concentric and eccentric shapes as well as with and without cylindrical ends. Transition pieces are also available.
- Diameter from DN 400 to DN 1800
- Wall thicknesses from 4.0 to 50.0 mm
- Materials: steels, stainless steels, duplex steels, CuNi steels, aluminum steels, titanium, Ni steels
- Most important product standards: DIN, EN
Special components
Uhlig is your experienced manufacturer in various fields. We can offer you various special designs on request.
- Tubes

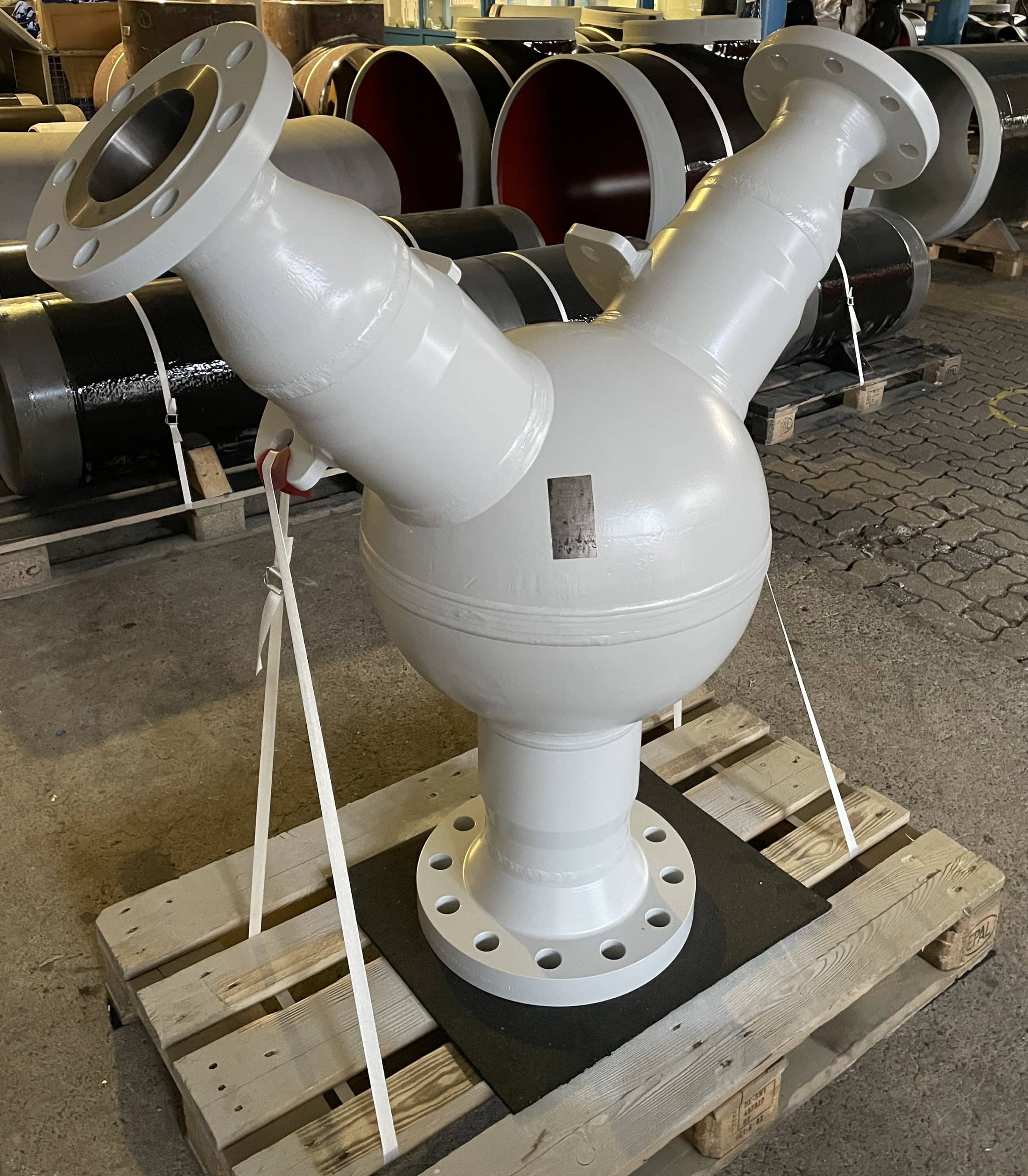

- Ball pieces
- Collector
- Special constructions
- Spools
- Prefabrication of piping components
- Durchmesser von DN 400 bis DN 1800, Wandstärken von 4,0 bis 50,0 mm
- Werkstoffe: Stähle, rostfreie Stähle, Duplexstähle, CuNi-Stähle, Aluminiumstähle, Titan, Ni-Stähle
- Most important product standards: DIN, EN
